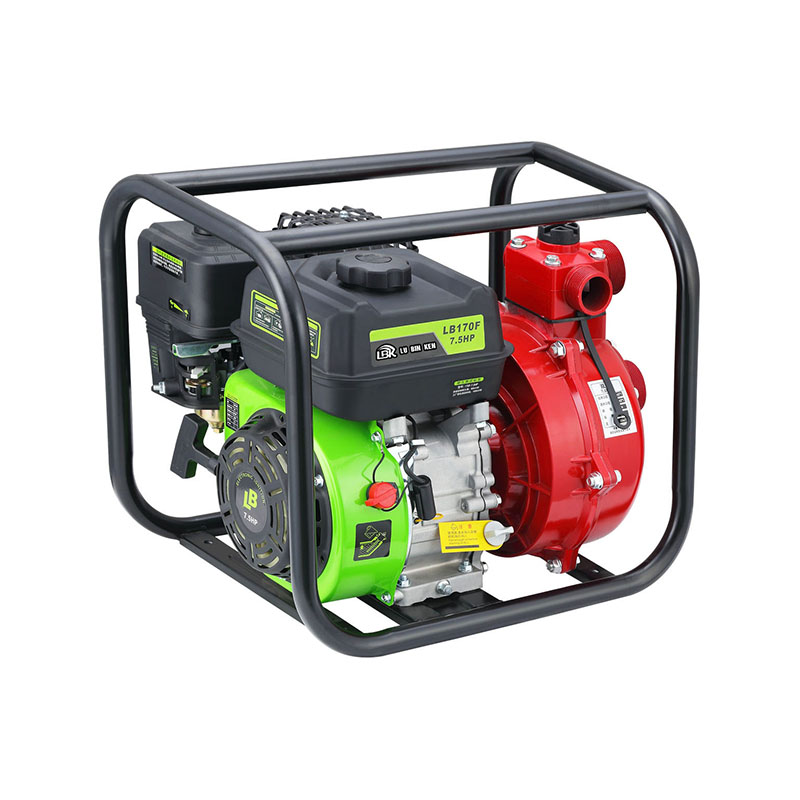

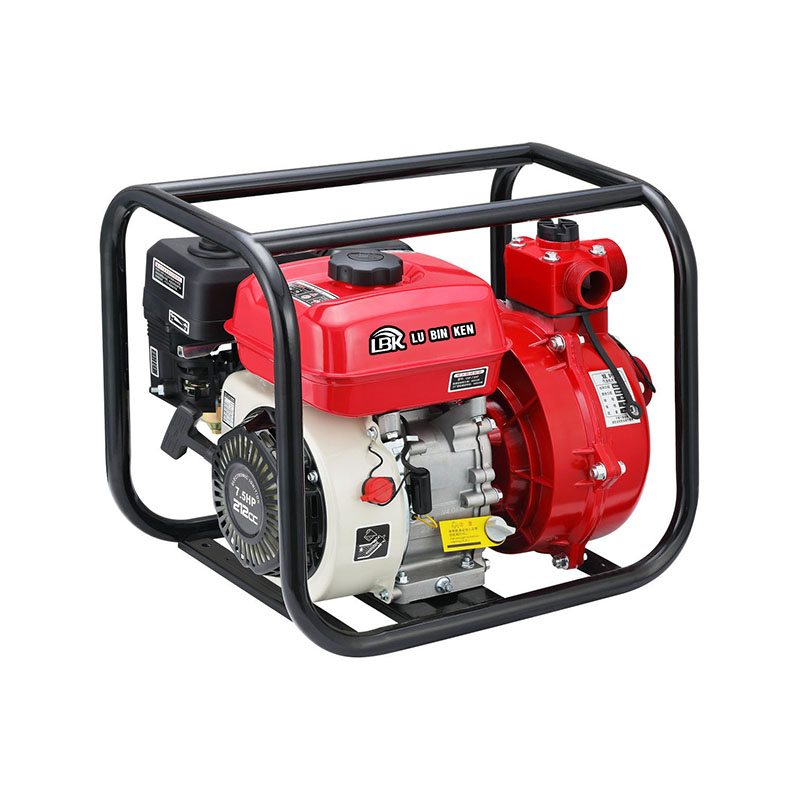

• Single or dual impeller options available to meet varying head and flow requirements
• Powered by a gasoline engine, delivering robust performance ideal for areas without electricity
• Specifically designed for agricultural irrigation, ensuring stable and efficient water supply
• Dual-impeller configuration enhances pumping head, making it suitable for long-distance water transfer
• Durable construction capable of withstanding sandy conditions and complex operating environments
• Easy to install and maintain, offering a long service life
| Model No. | LBK50HP-1 | LBK50HP-2 | ||||||||
| Engine | Model | LBK170F |
||||||||
| Type | Single cylinder、four-stroke、air-cooled |
|||||||||
| Bore x Stroke(mm) | 70x55 |
|||||||||
| Displacement(cm³) | 212 | |||||||||
| Max. output power (HP) | 7.5/3600 | |||||||||
| Ignition system | TCI |
|||||||||
| Starting system | Recoil/Electri | |||||||||
| Fuel tank capacity (L) | 3.6 | 3.6 | ||||||||
| Continuous working hours(h) | 4 | 4 | ||||||||
| Oil capacity (L) | 0.6 | 0.6 | ||||||||
| Pump | Dia. of inlet/outlet | 2" | 2" | |||||||
| Max.lift(m) | 65 | 90 | ||||||||
| Suction(m) | 7 | 7 | ||||||||
| Max.flux(m³/h) | 20 | 2 | ||||||||
| Carton size | N.W. (kg) | 26 | 27 | |||||||
| G.W. (kg) | 27 | 28 | ||||||||
| Carton size(cm) | 50.5×38.5x42 | 50.5x38.5x42 | ||||||||
