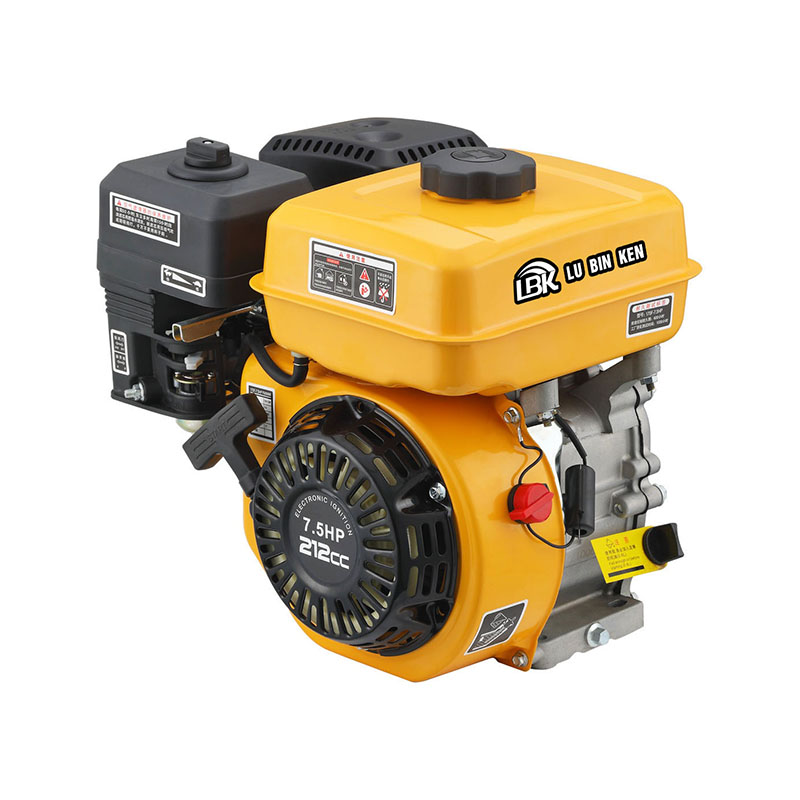

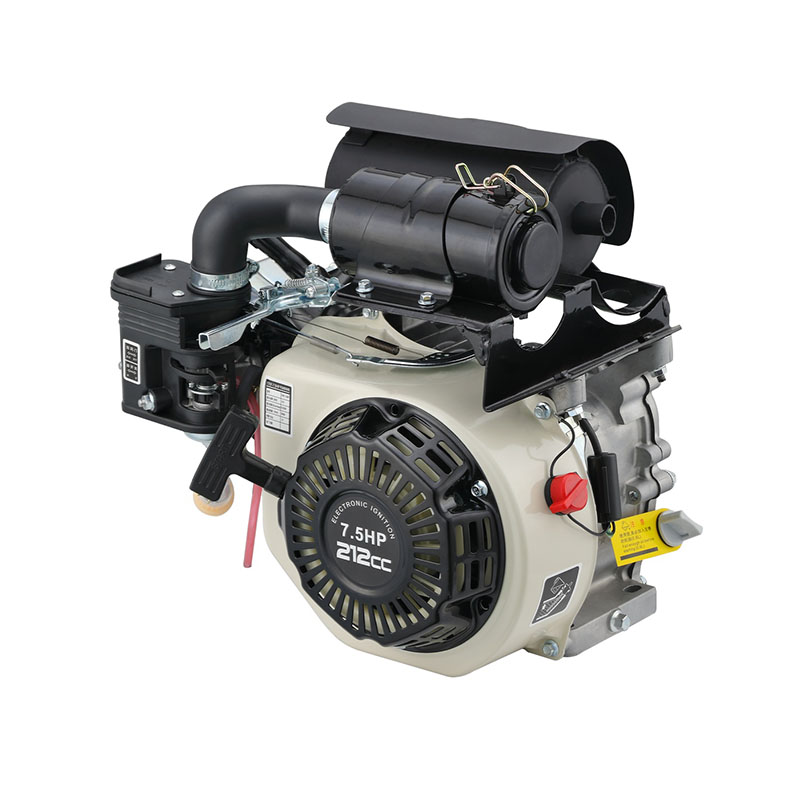

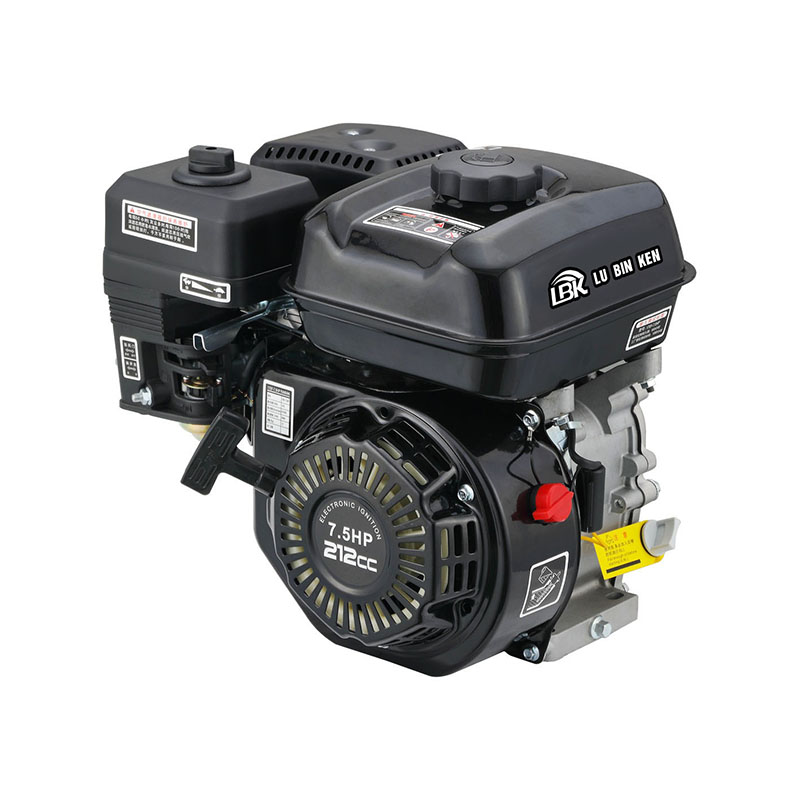

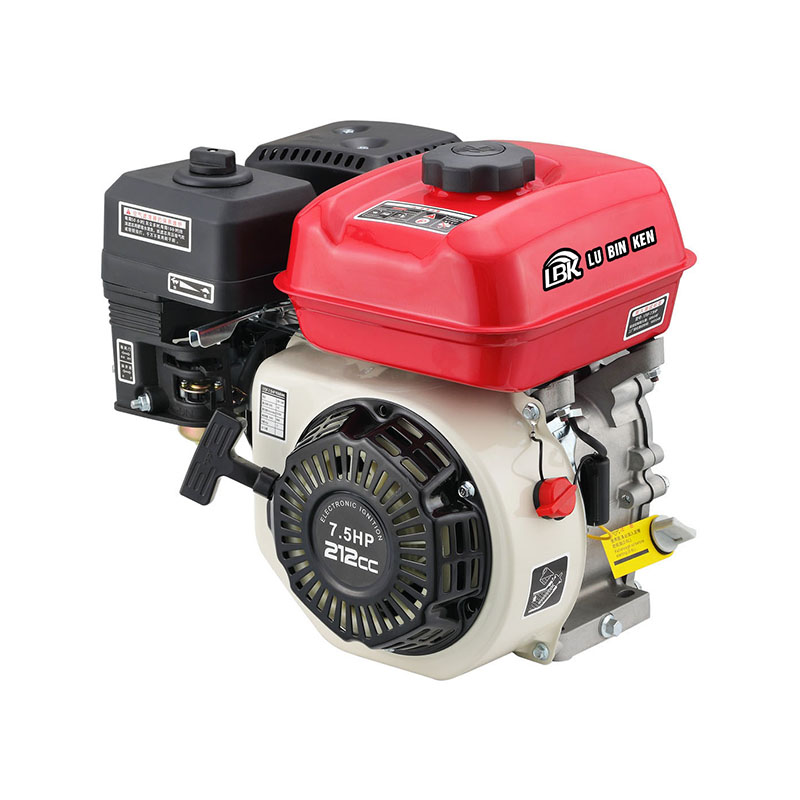

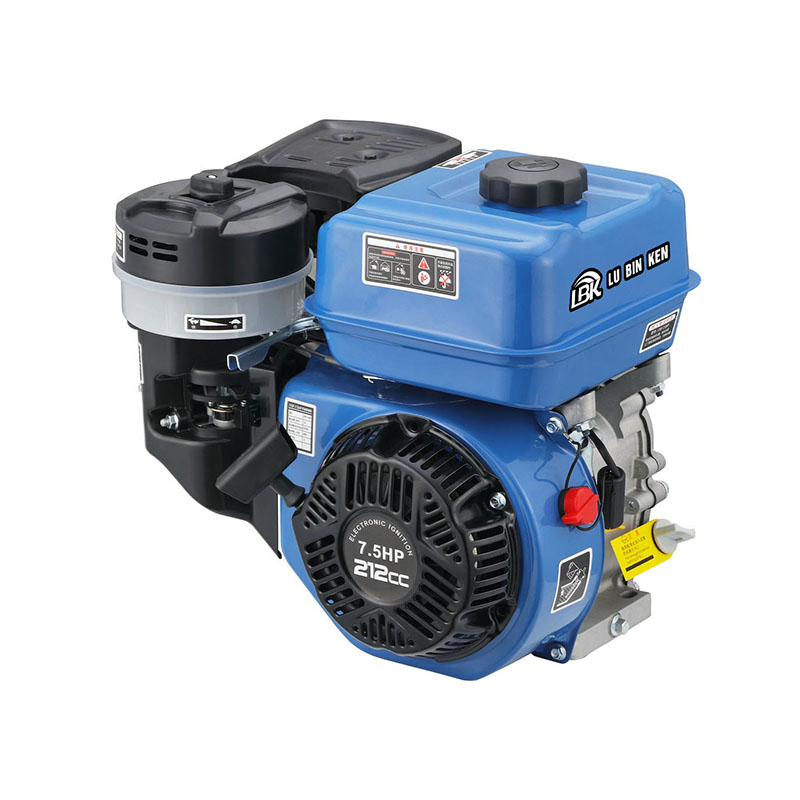

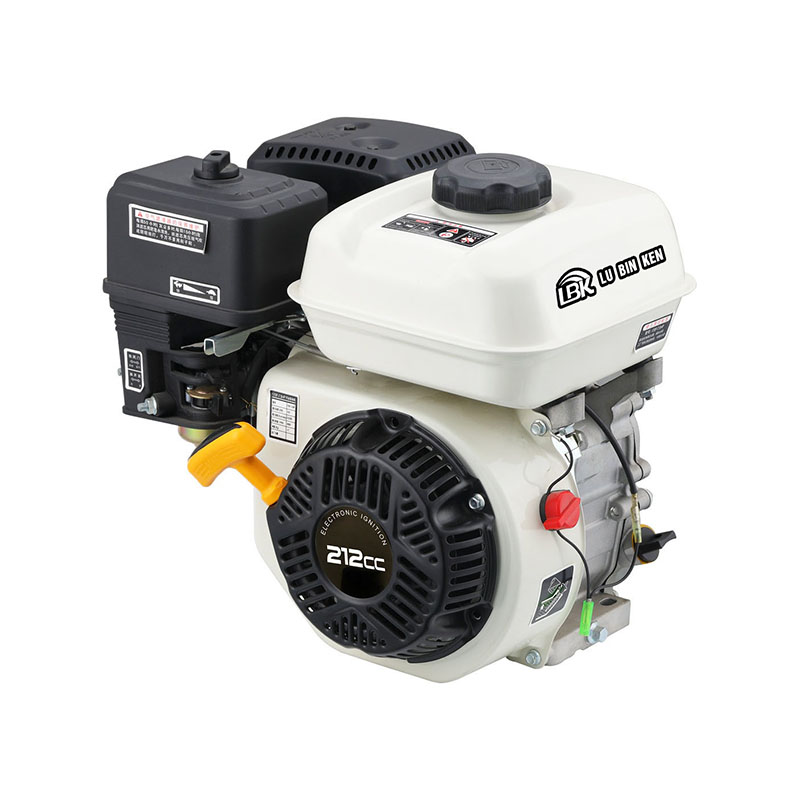

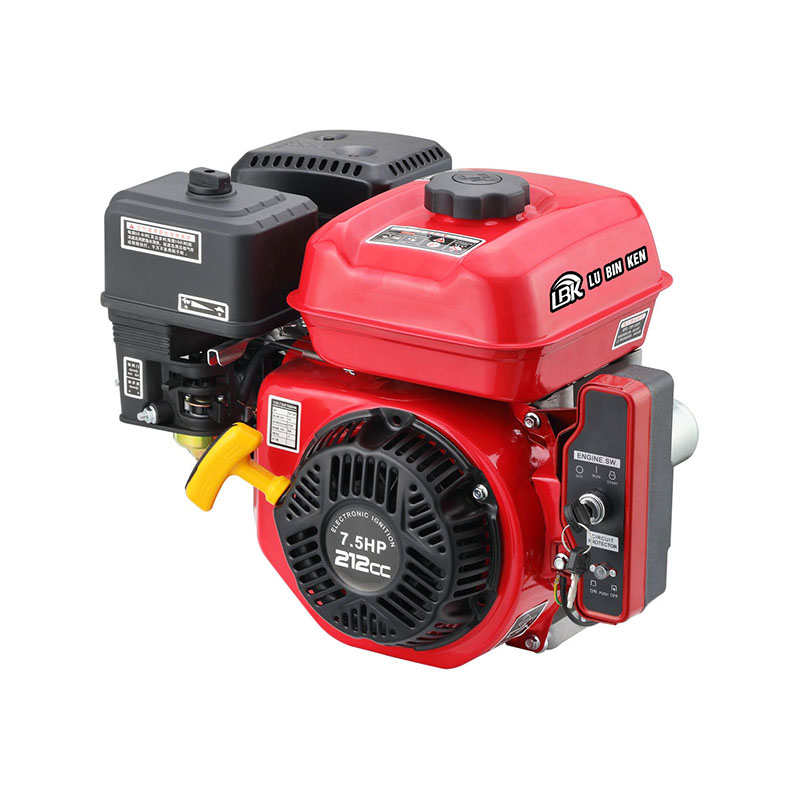

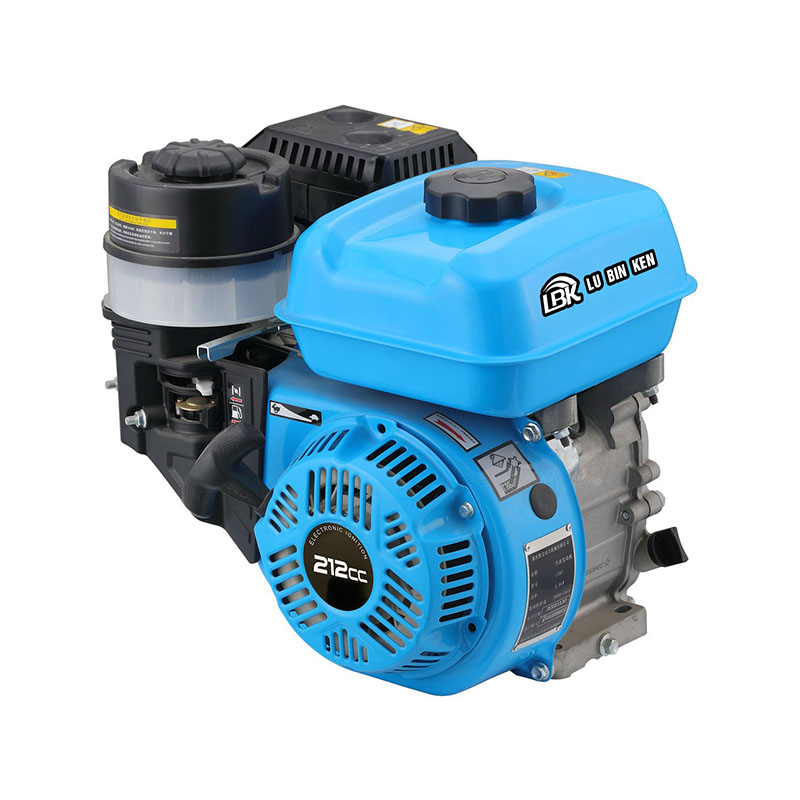

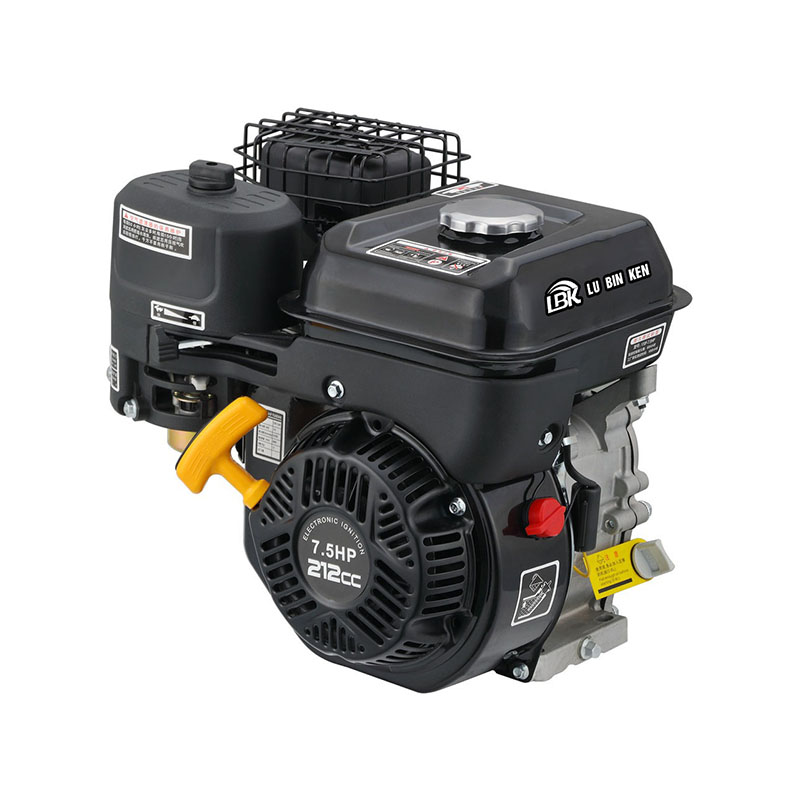

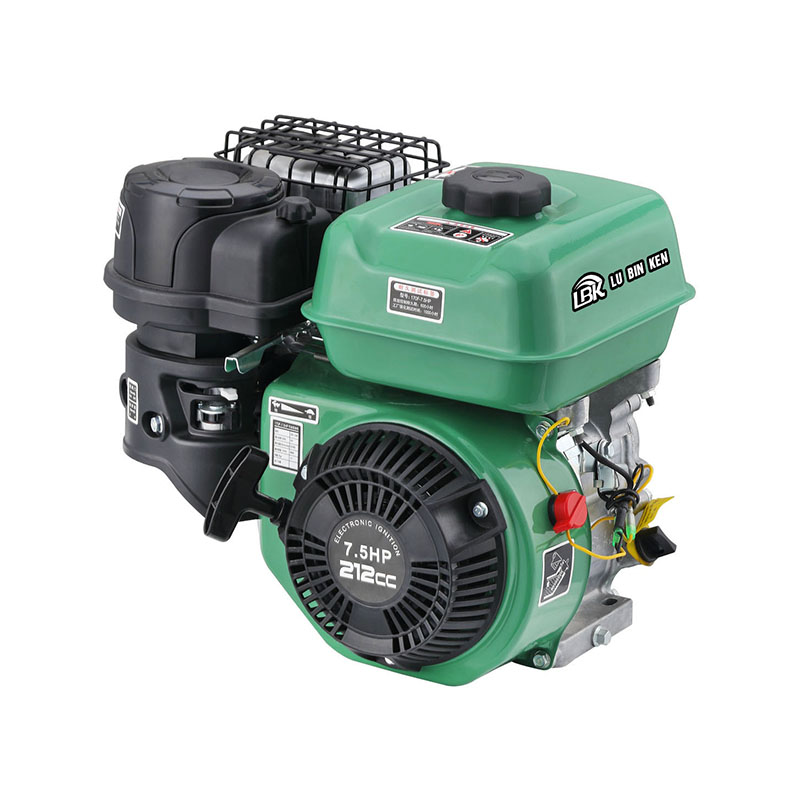

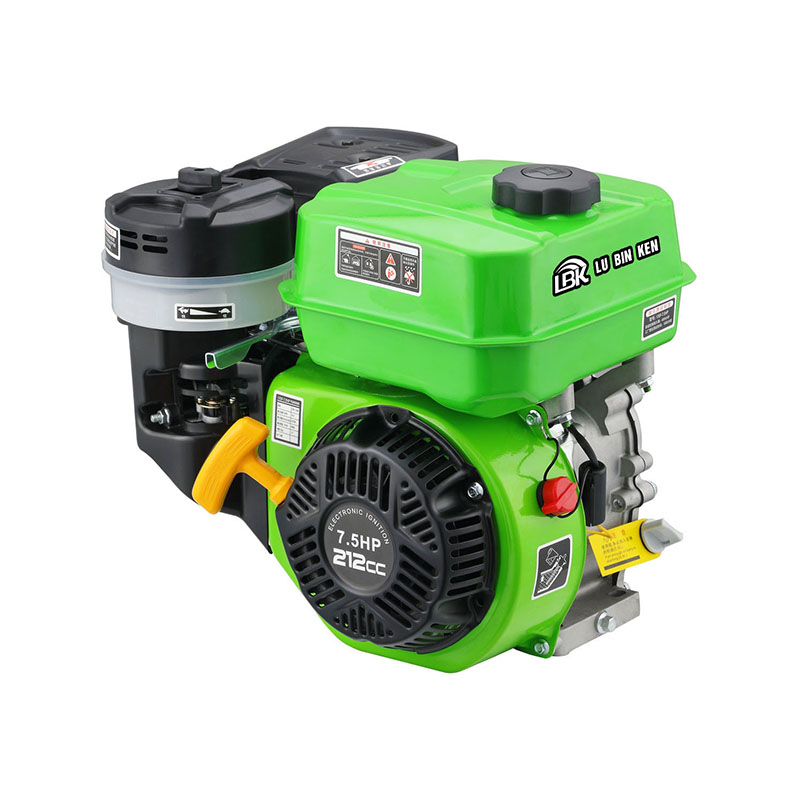

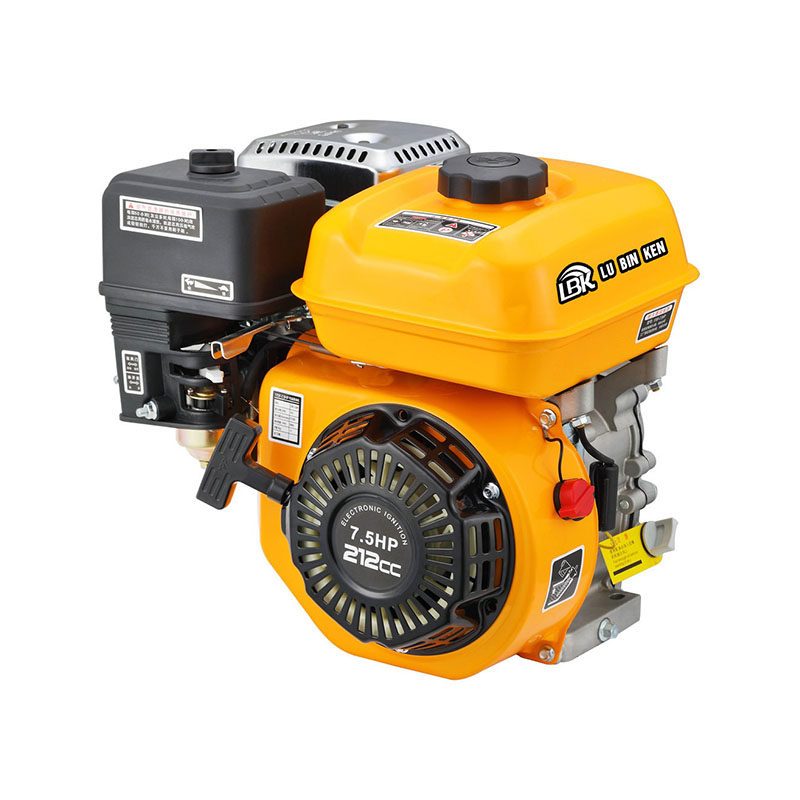

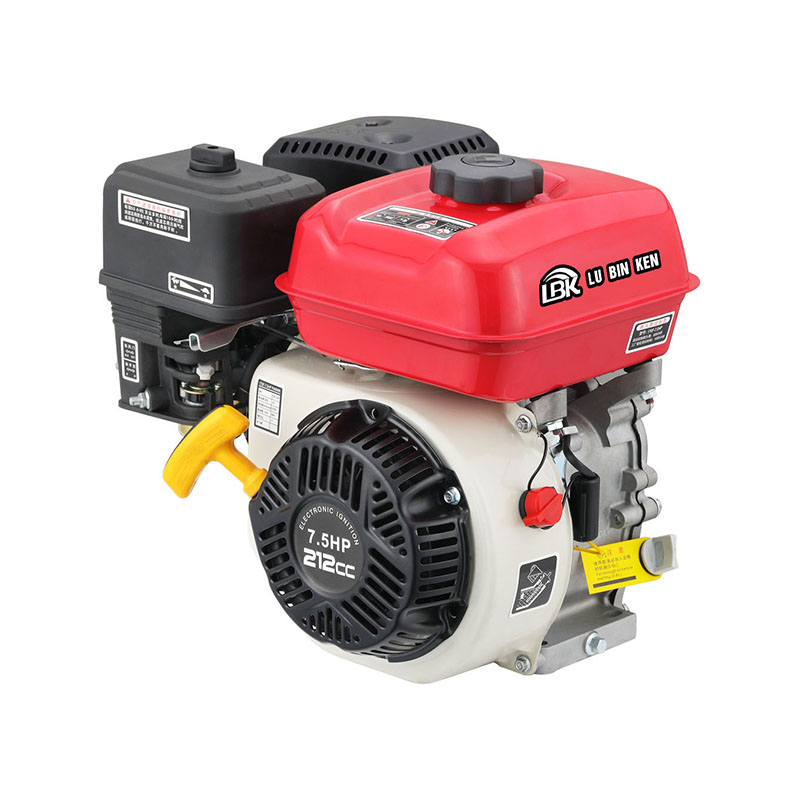

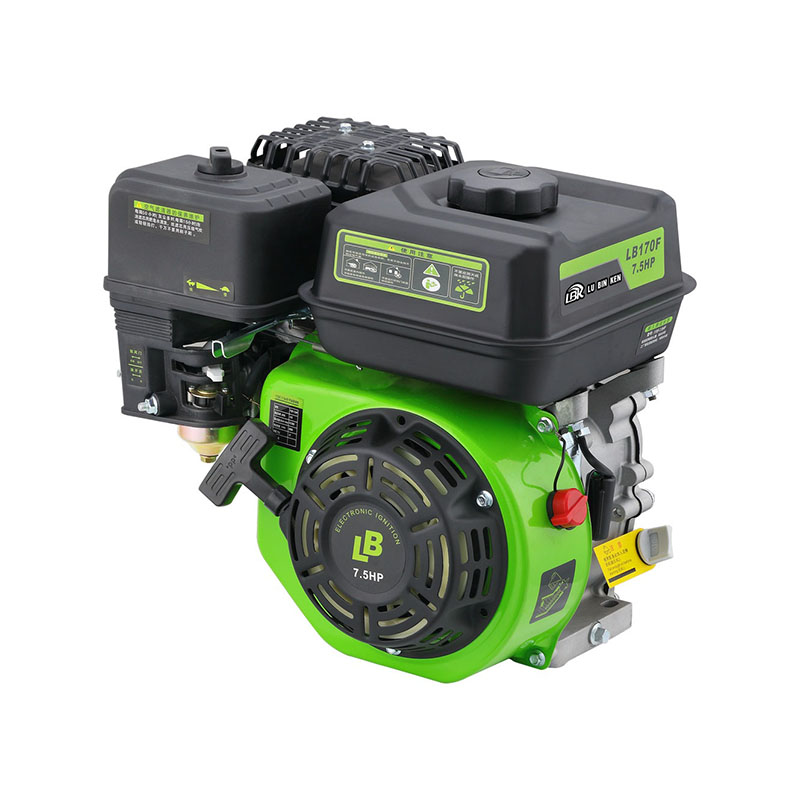

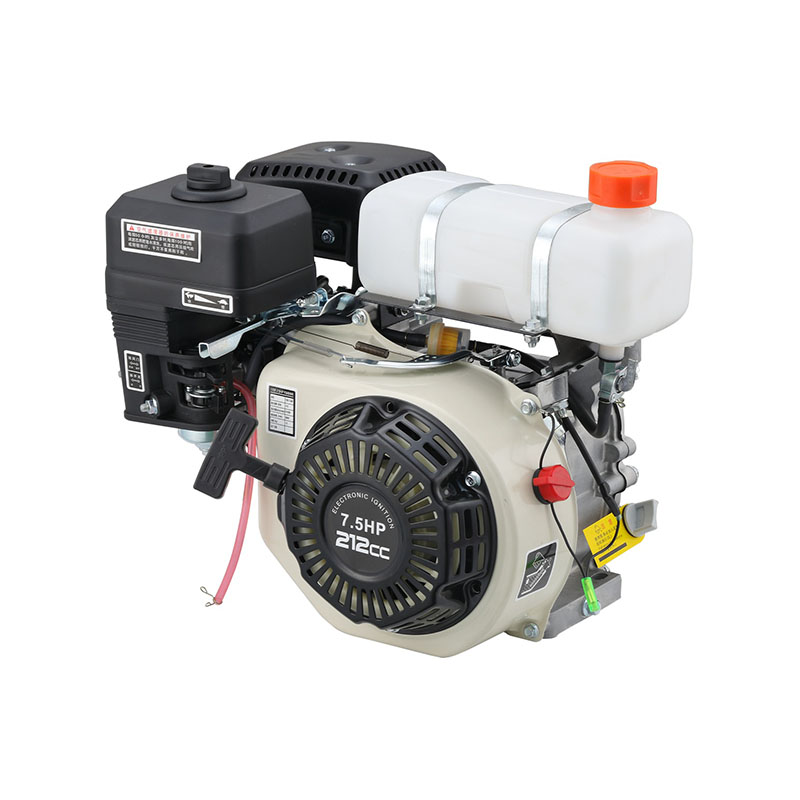

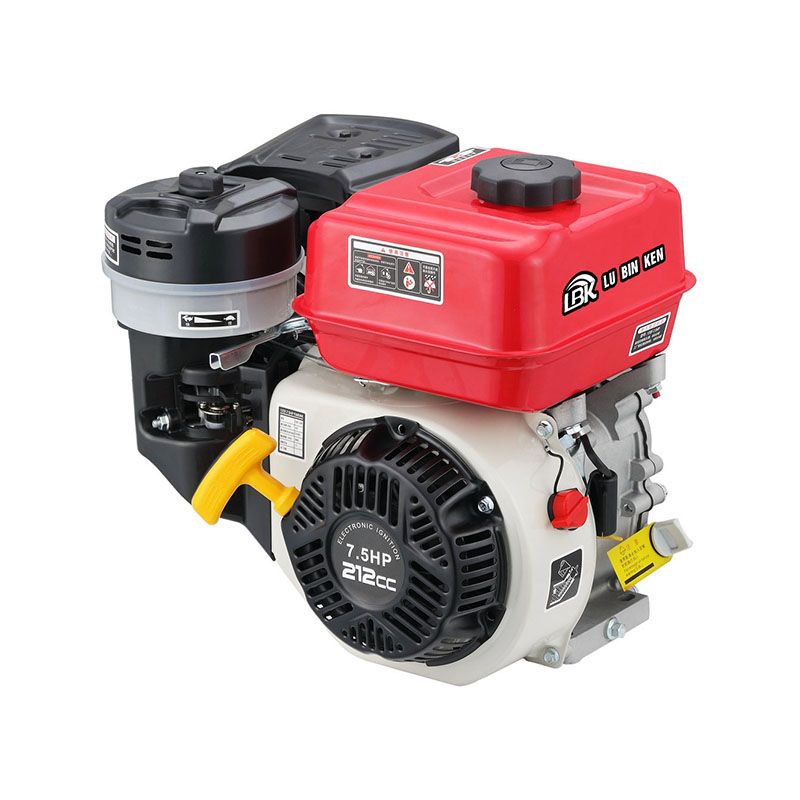

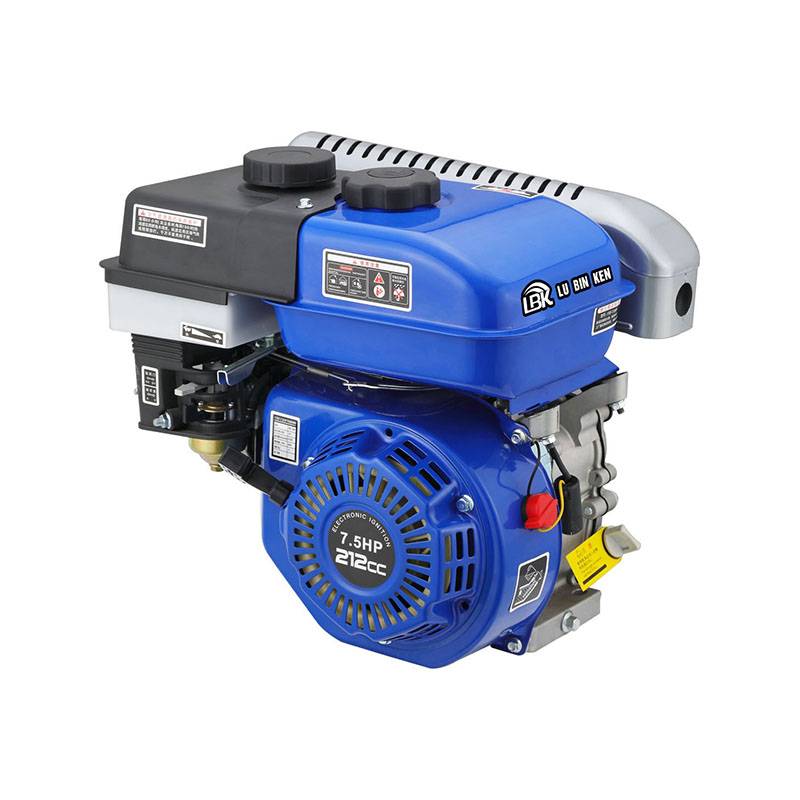

• Single-cylinder design: Compact structure, easy maintenance
• Four-stroke engine: High fuel efficiency, low emissions
• Forced air cooling: Rapid heat dissipation, suitable for high-temperature operating environments
• Wide range of applications: Garden machinery, generators, agricultural equipment
• Easy starting: Stable power output, durable and reliable
• Fuel type: Gasoline; delivers high-performance output
| Product parameters | 6.5HP | 7.5HP | 8.0HP | 8.5HP | |||
| Engine | Model No. | LBK200C | LBK212C | LBK220C | LBK236C | ||
| Type | Single cylinder、four-stroke、air-cooled | ||||||
| Borex Stroke(mm) | 68x54 | 70x55 | 70x58 | 72×58 | |||
| Displacement(cm³) | 196 | 212 | 225 | 236 | |||
| Max.output power(HP) | 6.5 | 7.5 | 8.0 | 8.5 | |||
| Max.torque(N.M./rpm) | 13.2/2500 | 14.1/2500 | 15/2500 | 16/3600 | |||
| lgnition system | TCI | ||||||
| Starting system | Recoil/Electric | ||||||
| Fuel tank capacity (L) | 3.6 | 3.6 | 3.6 | 3.6 | |||
| Continuous working hours(h) | 4 | 4 | 4 | 4 | |||
| Oil capacity (L) | 0.6 | 0.6 | 0.6 | 0.6 | |||
| Carton size | N.W. (kg) | 16 | 16 | 17.5 | 19 | ||
| G.W. (kg) | 17 | 17 | 18.5 | 20 | |||
| Carton size(cm) | 42x38x39 | 42x38x39 | 42x38x39 | 42x38x39 | |||
